Assembly Part 1

Assembly Block

Marked by assembly { ... }


						pragma solidity ^0.6.1;
						contract Hello {
							function SayHi() {
								assembly {
									// assembly code here
								}
							}
						}

## Comments - Use the // or /* */ to denote comments ``` assembly { // this is a comment /* this is a multiline * comment */ } ```

If

Conditionally execute code
No “else” block

if eq(value, 0) { value := 3 }

### Switch - Similar to "if", but with more branching options - Fallback or default case: `default` - No fall through to following cases ``` assembly { switch x case 0 { x := 1 } default { x := add(x,1) } } ```

### Loop - Repeat operations - break: exit the Loop - continue: skip to next iteration ``` function lo(uint max) public pure returns(uint result) { assembly { for { let i := 0 } lt(i, 20) { i := add(i, 1) } { if lt(i,3) { continue } if gt(i, max) { break } result := add(result,1) } } } ```

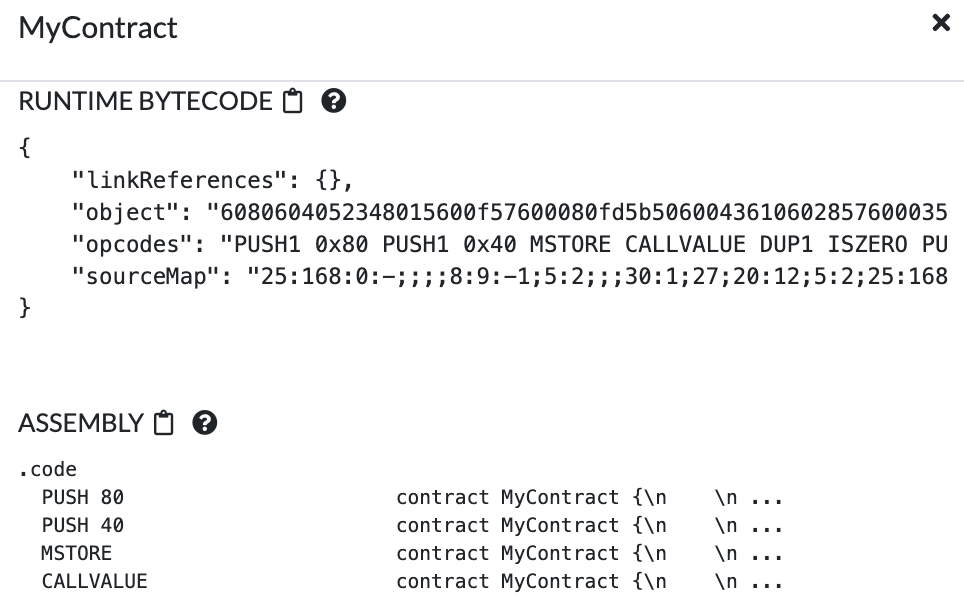

OpCode

OpCode (Operation Code) is a machine instruction that specifies the operation to be performed - Wikipedia

OpCode References

Opcodes in Ethereum Yellow Paper
- search for "Arithmetic Operations"
SHL, SHR, SAR: EIP 145
- Shift Left, Shift Right, Signed Shift Right
CREATE2: EIP 1014
EXTCODEHASH: EIP 1052
- code hash of an address

extcodehash

Used in openzeppelin IsContract() utilitity
Returns the code hash of a contract

assembly { codehash := extcodehash(accountAddress) }

Bitwise Operations

Operate at the bit level
AND, OR, XOR, NOT, SHL, SHR, SAR
x >> y == x / 2^y
x << y == x * 2^y
Bit Operations
Bit Twiddling Hacks

### Data Sanity - If you access variables of a type that spans less than 256 bits (e.g. uint64, address, bytes16 or byte), bits not part of the type, may not be `zeroed` - Always clear data before using it ``` uint32 x = f(); assembly { x := and(x, 0xffffffff) /* now use x */ } ```

### Two's Complement - Used in EVM - Same arithmetic for signed and unsigned - No negative 0

### Signed Functions - Use to process signed data - sdiv(), smod(), slt(), sgt(), sar(), signextend() - Would x be 100 or 99 from the following code? ``` int a = -3; assembly { let x := 100 if lt(a, 0) { x := 99 } } ```

Gas Fee

Fee schedule in Ethereum Yellow Paper
Some opcodes are more expensive than others
- e.g. multiplication costs 5 gas; shift left costs 3 gas

### Benefits of Inline Assembly - Code could be more gas efficient - Bypass Solidity safety checks - Less code, less gas fee - Some operations only available in assembly

Lab

Follow the instructions on the readme file of assembly-loop
